KP中压冷缩终端

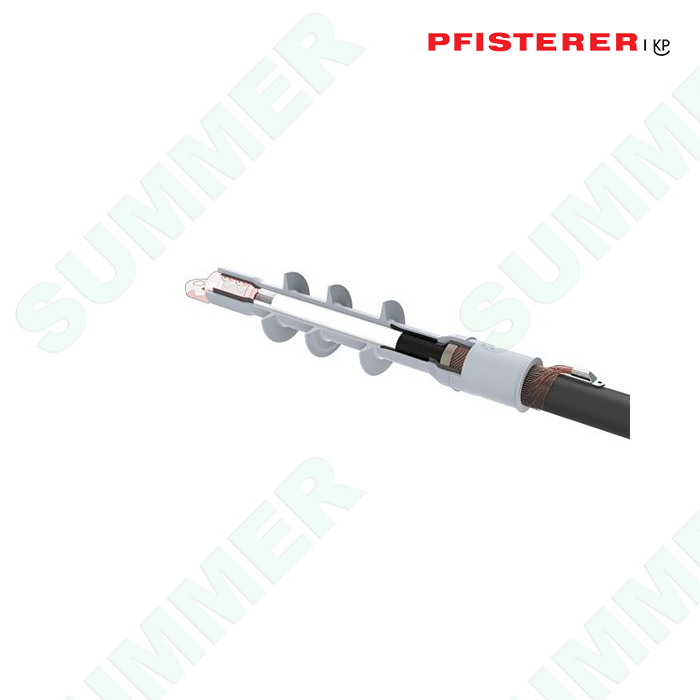

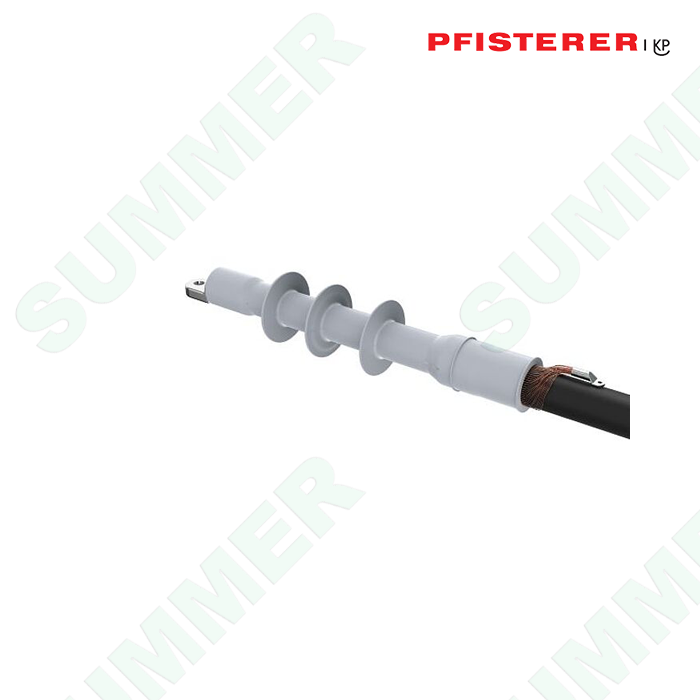

PFISTERER 端子由高强度硅胶制成，可靠耐用。它们可承受最恶劣的天气条件，抗暴晒，并在很宽的温度范围内保持相同的绝缘强度和对电缆的恒定压力。有机硅的疏水特性可防止污染。与SICON螺栓连接电缆接线片相结合，用于中压电缆的PFISTERER终端易于安装，并确保可靠的电缆连接和出色的绝缘性能。
产品特色/优势
所有导体的可靠接触；所有导线的最佳接触力；不会损坏单个导体；优异的绝缘性；自清洁，免维护；应用范围广
选型表
电压 | 场景 | 导体截面积 | 芯数 | 产品型号 | 芯数 | 产品型号 | 适用绝缘外径mm |
10kv | 户内 | 25-50mm² | 单芯 | CPCIT-1-10-1 | 三芯 | CPCIT-3-10-1 | 16.0-20.0 |
70-120mm² | CPCIT-1-10-2 | CPCIT-3-10-2 | 19.5-24.5 | ||||
150-240mm² | CPCIT-1-10-3 | CPCIT-3-10-3 | 24.0-30.5 | ||||
300-400mm² | CPCIT-1-10-4 | CPCIT-3-10-4 | 30.0-36.0 | ||||
500-630mm² | CPCIT-1-10-5 | CPCIT-3-10-5 | 35.5-42.0 | ||||
户外 | 25-50mm² | 单芯 | CPCOT-1-10-1 | 三芯 | CPCOT-3-10-1 | 16.0-20.0 | |
70-120mm² | CPCOT-1-10-2 | CPCOT-3-10-2 | 19.5-24.5 | ||||
150-240mm² | CPCOT-1-10-3 | CPCOT-3-10-3 | 24.0-30.5 | ||||
300-400mm² | CPCOT-1-10-4 | CPCOT-3-10-4 | 30.0-36.0 | ||||
500-630mm² | CPCOT-1-10-5 | CPCOT-3-10-5 | 35.5-42.0 | ||||
35kv | 户内 | 50-95mm² | 单芯 | CPCIT-1-35-1 | 三芯 | CPCIT-3-35-1 | 29.5-34.5 |
120-185mm² | CPCIT-1-35-2 | CPCIT-3-35-2 | 35-41.5 | ||||
240-400mm² | CPCIT-1-35-3 | CPCIT-3-35-3 | 41.5-48.5 | ||||
500-630mm² | CPCIT-1-35-4 | CPCIT-3-35-4 | 49-55.5 | ||||
800mm² | CPCIT-1-35-5 | CPCIT-3-35-5 | 56-60.5 | ||||
户外 | 50-95mm² | 单芯 | CPCOT-1-35-1 | 三芯 | CPCOT-3-35-1 | 29.5-34.5 | |
120-185mm² | CPCOT-1-35-2 | CPCOT-3-35-2 | 35-41.5 | ||||
240-400mm² | CPCOT-1-35-3 | CPCOT-3-35-3 | 41.5-48.5 | ||||
500-630mm² | CPCOT-1-35-4 | CPCOT-3-35-4 | 49-55.5 | ||||
800mm² | CPCOT-1-35-5 | CPCOT-3-35-5 | 56-60.5 |
